Intelligent tunnel ironing system designed for ladies wear, casual wear, dresses, children's garments, sportswear, and fashion apparel with automatic steaming, drying, cooling, and wrinkle removal.

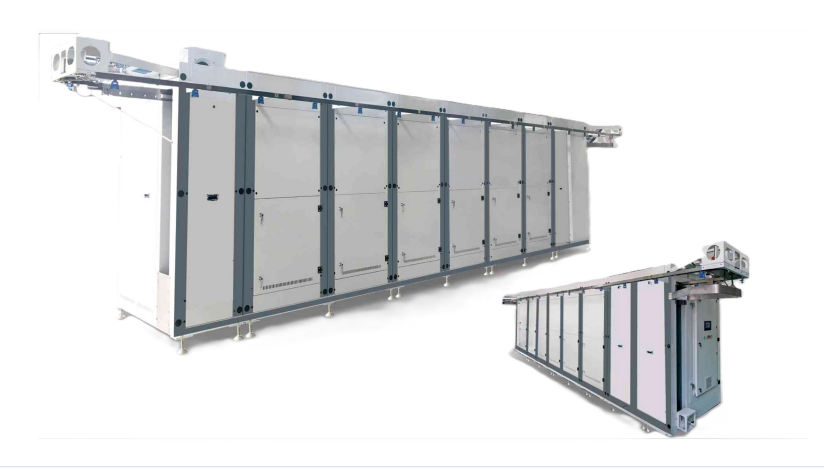

The ES Series Tunnel Finisher is a fully automatic garment ironing solution designed for high-volume processing of ladies wear, casual wear, dresses, sportswear, and children's garments.
The machine integrates steam treatment, drying, sterilization, cooling, and dehumidification into one continuous production process, providing uniform garment finishing with minimal manual intervention.
Processes 150–1200 garments per hour while requiring only one or two operators.
Delivers consistent wrinkle-free finishing across every garment.
Automatic deskilling significantly reduces manual ironing requirements.
Critical areas such as collars, cuffs, and hems can be refined easily if required.
| Parameter | ES-150 | ES-300 | ES-600 | ES-1000 | ES-1200 |
|---|---|---|---|---|---|
| Maximum Capacity | 150 pcs/hr | 300 pcs/hr | 600 pcs/hr | 1000 pcs/hr | 1200 pcs/hr |
| Power | 12 kW | 14 kW | 20 kW | 26 kW | 27 kW |
| Steam Consumption | 80–120 kg/h | 100–150 kg/h | 130–180 kg/h | 150–200 kg/h | 200–250 kg/h |
| Steam Pressure | 0.4 MPa | ||||
| Voltage | 3-Phase 380V AC 50Hz | ||||
| Air Pressure & Consumption | 0.4 MPa, 25 L/h | ||||
| Machine Size | 4600 × 1520 × 2350 mm | 6600 × 1520 × 2350 mm | 8600 × 1520 × 2350 mm | 10600 × 1520 × 2350 mm | 12600 × 1520 × 2350 mm |
Standard: 3 m Infeed/Outfeed Conveyor
Optional: Inbuilt Electric Steam Generator
