High-precision flat bed pattern cutting system designed for apparel, footwear, leather, technical textiles, and industrial applications.

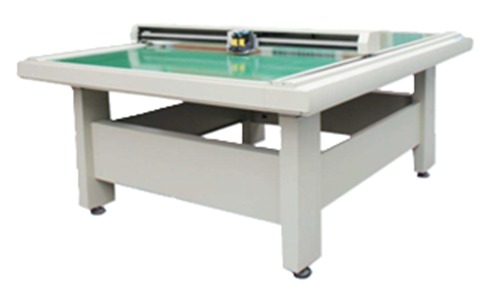

The Flat Bed Pattern Cutter is designed for precise cutting of paper patterns, cardboard, PVC sheets, leather, and various industrial materials.
It provides accurate cutting performance, reduced manual operations, and improved productivity for pattern development and sampling departments.
Ensures high-speed and accurate cutting.
Paper, cardboard, leather, foam, and fabrics.
Supports mainstream CAD software.
Reduces manual operation and improves efficiency.
Excellent dimensional accuracy.
Reliable design for continuous operation.
| Machine Model | FC 1509 / FC 1512 |
|---|---|
| Operating Characteristics | Can be connected to any CAD software, computer-aided design and cutting simultaneously. |
| Cutting Speed | 1200 mm/s |
| Inkjet Speed | 90 m²/h |
| Inkjet Type | HP45 cartridges |
| Repeated Accuracy | < 0.1 mm |
| Software Resolution | 0.025 |
| Transport Port | USB, Networking Printing |
| Buffer Capacity | One-time fast transmission |
| Instruction System | HP-GL Compatible Format |
| Control Interface | LCD key screen |
| Drive System | High precision stepper driver, imported linear guide, imported bearing |
| Operating Voltage / Power | AC 220V; 50HZ / 400W |
| Working Environment | -5°C to 40°C |
| Effective Operating Range |
1500mm × 900mm 1500mm × 1200mm |
